Minisforum UM790 Pro
SUBSCRIBE TO OUR NEWSLETTER
Get the latest updates on news and sales
Minisforum Mini PC
- AMD Ryzen™ 9 7940HS
- AMD Radeon™ 780M Graphics
- Quad-displays support (4K@144Hz) ×2 and (8K@60Hz) ×2
- Up to 64 GB DDR5 Dual channel RAM, PCIe4.0 SSD ×2
- Integrated Wi-Fi 6E and 5.3 Bluetooth for easy wireless connections
- $487.00
$701.00- $487.00
- Unit price
- per
Please hurry! Only 4 left in stock
Subtotal:
$487.00
Couldn't load pickup availability
Shipping
Logistics Time:
Shipping from DE/JP warehouse: 3-7 days
Shipping from Hong Kong warehouse: 15-25 days
Customs Duties and Taxes
Priority is given to arranging dispatch from overseas warehouses.
If the overseas warehouse is out of stock, the goods will be shipped from Hong Kong. the goods will first be sent to a overseas warehouse and then forwarded to you, all costs are already covered by the seller.
Shipping from DE/JP warehouse: 3-7 days
Shipping from Hong Kong warehouse: 15-25 days
Customs Duties and Taxes
Priority is given to arranging dispatch from overseas warehouses.
If the overseas warehouse is out of stock, the goods will be shipped from Hong Kong. the goods will first be sent to a overseas warehouse and then forwarded to you, all costs are already covered by the seller.
Description
xMinisforum UM790 Pro is a very powerful mini PC based on super up-to-date components.
- AMD Ryzen™ 9 7940HS Processor has 8 Cores and16 Threads, Adopting the latest "Zen 4"architecture running up to 5.2GHz.
- Support quad-displays with 2x HDMI(4K@60Hz) and 2x USB4(8K@60Hz). With the special USB4 port, you could take advantage of high speed data transfer and enhance the graphics function.
- DDR5 dual channel up to 64GB 5600MHz and M.2 PCIe4.0 SSD ×2.
- 2.5Gigabit ethernet for wired connections and for wireless data there is Intel Killer AX1675 wireless network card and bluetooth 5.3.
- Adopting innovative liquid metal and Cold Wave 2.0 for better cooling performance with lower noise level.
UM790 PRO
xSpecification：
Processor
AMD Ryzen™ 9 7940HS Processor, 8 Cores/16 Threads
(16M Cache, up to 5.2 GHz)
Graphics
AMD Radeon™ 780M (Graphics Frequency 2800MHz)
Memory
DDR5 Dual channel (SODIMM Slots×2, Up to 5600MHz, Max 64GB)
Storage
M.2 2280 PCIe4.0 SSD ×2
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi 6E，BlueTooth 5.3)
Video Output
HDMI 2.1 (4K@144Hz) ×2
USB4 (8K@60Hz) ×2
Audio Output
HDMI 2.1 ×2
Audio Jack ×1
Ports & Buttons
RJ45 2.5G Ethernet Port ×1
USB3.2 Gen2 Type-A Port ×4
USB4 Port ×2 (Alt PD)
HDMI 2.1 ×2
Audio Jack ×1
DMIC ×1
Clear CMOS ×1
Power
DC 19V (adapter included)
System
Windows 11 Home
Dimensions
130mm*126mm*52.3mm (5.12*4.96*2.06 inches)
UM780XTX
xSpecification：
Minisforum UM780XTX
Processor
AMD Ryzen™ 7 7840HS Processor, 8 Cores/16 Threads
(16M Cache, up to 5.1 GHz)
Graphics
AMD Radeon™ 780M
Memory
DDR5 Dual channel (SODIMM Slots×2, Up to 5600MHz, Max 96GB)
Storage
2×M.2 2280 PCIe4.0 SSD
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi 6E，BlueTooth 5)
Video Output
HDMI 2.1 ×1；DP1.4 ×1；USB4 ×2
Audio Output
HDMI 2.1 ×1；DP ×1；Audio Jack ×1
Ports & Buttons
RJ45 2.5G Ethernet Port×2
Oculink Port x1
USB3.2 Gen2 Type-A Port ×4
USB4 Port ×2(Alt PD)
HDMI 2.1 ×1
DP 1.4 ×1
Audio Jack ×1
DMIC ×1
Clear CMOS ×1
Power
DC 19V (Adapter Included)
System
Windows 11 Pro
Dimensions
127mm*130mm*60.6mm
UM690
xSpecification：
Minisforum UM690
Processor
AMD Ryzen™ 9 6900HX
8 Cores/16 Threads
Graphics
AMD Radeon™ 680M (2400 MHz)
Memory
DDR5 Dual channel
(SODIMM Slots×2)
Storage
M.2 2280 PCIe 4.0 SSD
Storage Expansion
2.5 inch SATA HDD Slot x 1 (SATA 3.0, 6.0Gb/s)
Wireless Connectivity
M.2 2230 WIFI Support
(Wi-Fi，BlueTooth)
Video Output
HDMI x 2 (4K@60Hz)
USB4 x 1 (8K@60Hz)
Audio Output
HDMI
3.5mm Combo Jack
Ports & Buttons
RJ45 2.5 Gigabit Ethernet Port × 1
USB 3.2 Gen2 Type-A × 4
USB 3.2 Gen2 Type-C × 1(Data Only, Front, Right)
USB4 Type-C × 1(Front, Left)
HDMI × 2
Clear CMOS × 1
DMIC × 1
3.5mm Combo Jack × 1
Power
DC 19V (adapter included)
System
Windows 11 Pro
Dimensions
128mm*126mm*47mm

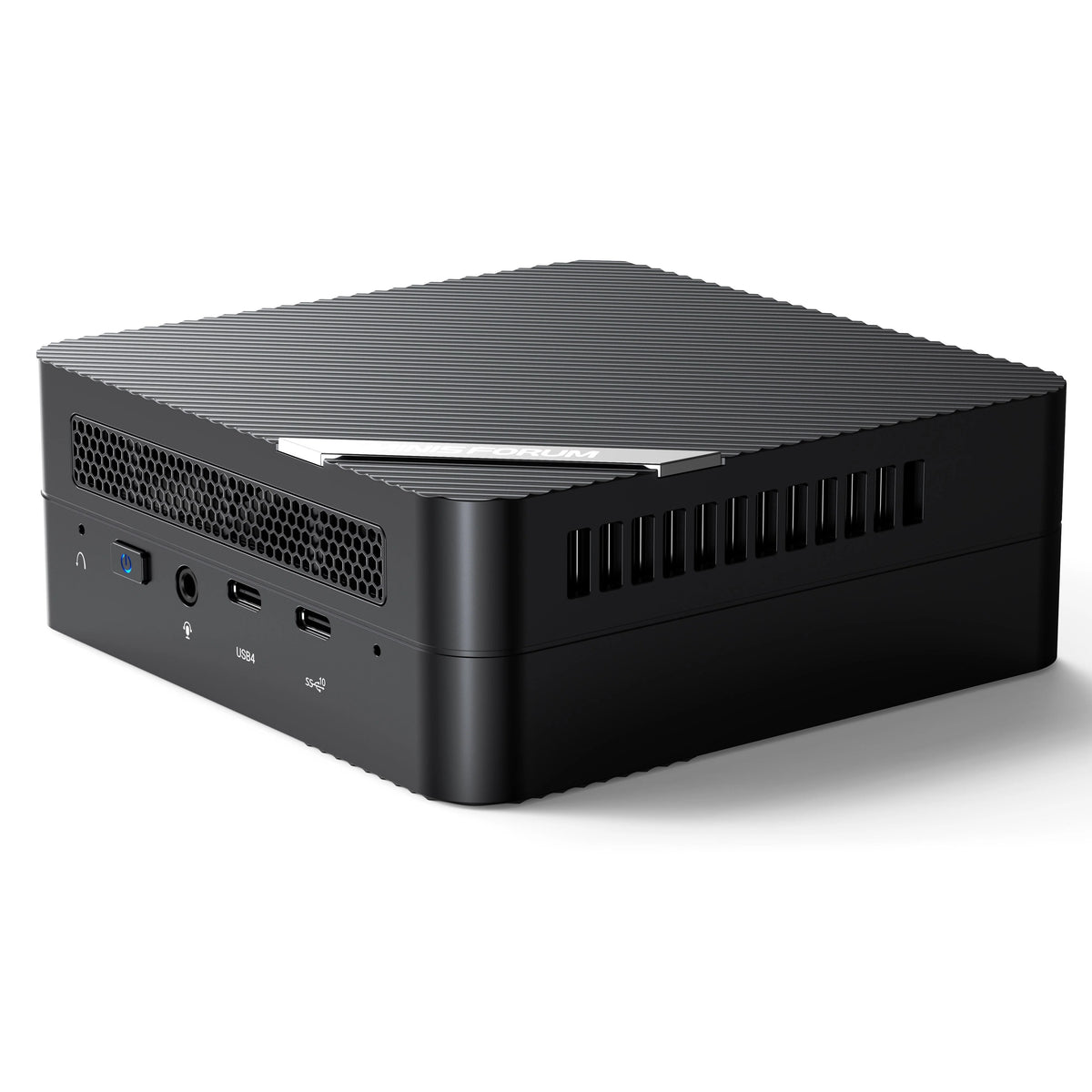

UM773 Lite
xSpecification：
Minisforum UM773Lite
Processor
AMD Ryzen™ 7 7735HS , 8 Cores/16 Threads
Graphics
AMD Radeon™ 680M (Graphics Frequency 2200 MHz)
Memory
DDR5 Dual channel (SODIMM Slots ×2, up to 64GB)
Storage
M.2 2280 PCIe4.0 SSD
Storage Expansion
1×2.5 inch SATA HDD Slot (SATA 3.0 6.0Gb/s)
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi，BlueTooth)
Video Output
HDMI (4K@60Hz) ×2; USB4 ×1
Audio Output
HDMI ×2; 3.5mm Combo Jack ×1
Ports & Buttons
RJ45 2.5 Gigabit Ethernet Port ×1
USB3.2 Gen2 Type-C ×1 (Data Transfer, Right)
USB3.2 Gen2 Type-A ×2
USB2.0 Type-A ×2
USB4 Type-C ×1 (Left)
HDMI ×2
Clear CMOS ×1
DMIC ×1
3.5mm Combo Jack ×1
Power
DC 19V (adapter included)
System
Windows 11 Pro
EM680
xSpecification：
Minisforum EM680
Processor
AMD Ryzen™ 7 6800U, 8 Cores / 16 Threads
(16M L3 cache, up to 4.7GHz)
Graphics
AMD Radeon™ 680M (Graphics Frequency 2200MHz)
Memory
LPDDR5 Dual channel (Onboard, 16GB or 32GB, 6400MHz)
Storage
M.2 2230 PCIe4.0 SSD ×1 (up to 2TB)
Storage Expansion
TF Card Slot ×1
Wireless Connectivity
Onboard WIFI Support (Wi-Fi 6E，BlueTooth 5.3)
Video Output
HDMI 2.1 (4K@144Hz) ×1; USB4 (8K@60Hz) ×2
Audio Output
HDMI 2.1 ×1; Audio Jack ×1
Ports & Buttons
USB3.2 Gen2 Type-A Port ×3
USB4 Port ×2 (Alt PD)
TF Card Slot ×1
HDMI 2.1 ×1
Audio Jack ×1
DMIC ×1
Clear CMOS ×1
Power
65W GaN Type-C Power Delivery Adapter (Included)
System
Windows 11 Pro
Dimensions
80mm×80mm×43mm
